New BLDC series

Electro-Parts has developed a new BLDC motors series, covering a vast spectrum of industrial applications, with power ranging from 50W to 1 kW.

Following optionals can be added to standard motor:

  • Hall sensors
  • Magnetic brake
  • Encoder
  • Application specific shaft design

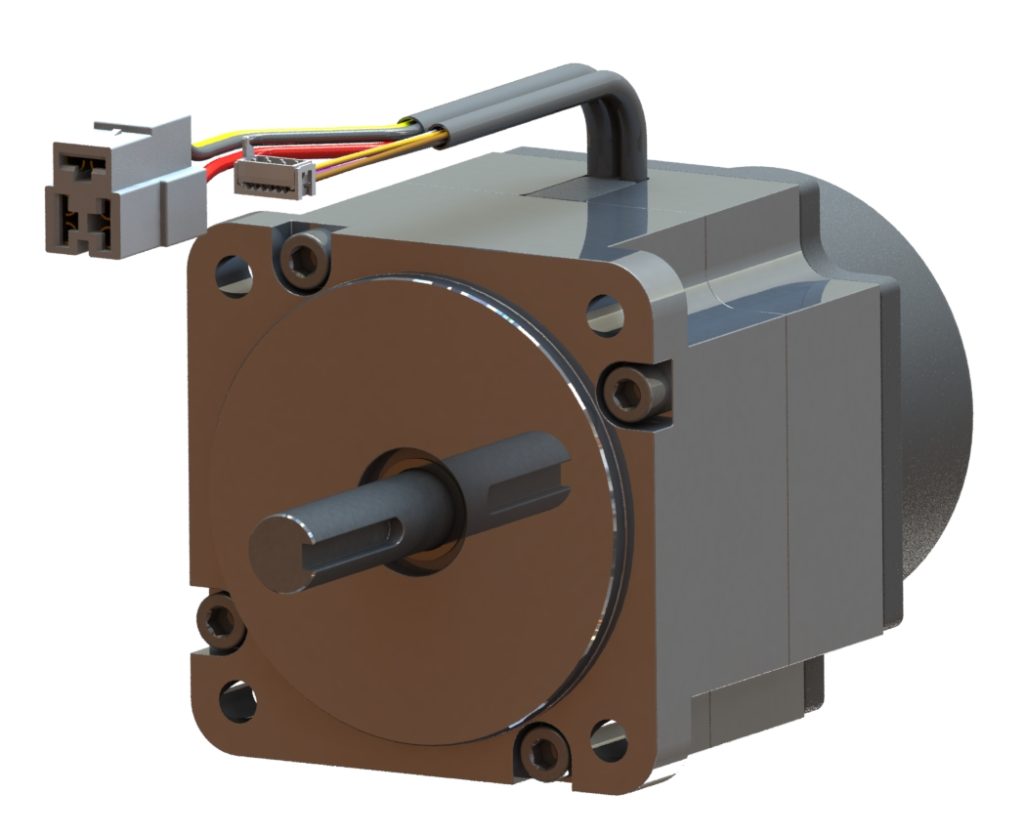

NEW BLDC Motors from Electro Parts
packaging line industrial
Automatic robot moving a package
bldc e1716891926398
bldc e1716891926398
bldc e1716891926398
bldc e1716891926398
bldc e1716891926398

EP 50

EP 60

EP 80

EP 100

Flange size

50mm

60mm

80mm

100m

Nominal Power

50W

130 W

300 ÷ 600 W

300 ÷ 1000 W

Nominal Torque

0,08 Nm

0,03 Nm

1,3 ÷ 1,9 Nm

2 ÷ 3,8 Nm

Stall Torque

0,24 Nm

0,9 Nm

3,9 ÷ 5,7 Nm

6 ÷ 11,4 Nm

Nominal Voltage

24 ÷ 48 V

24 ÷ 48 V

24 ÷ 48 V

24 ÷ 48 V

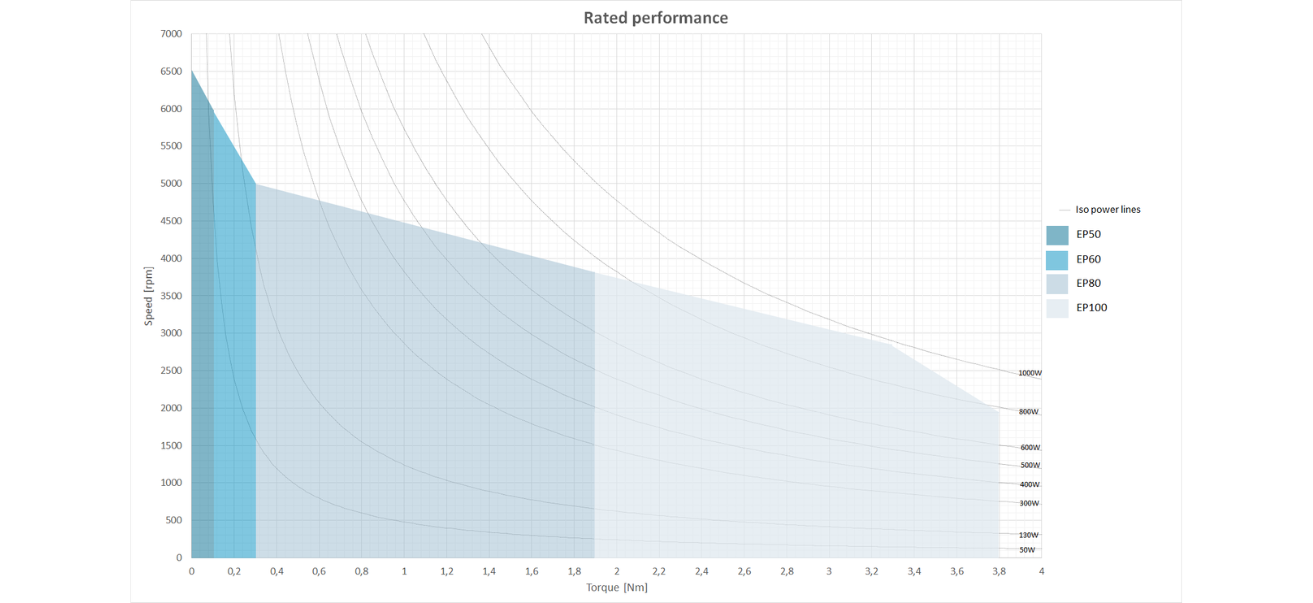

Performance Map

Click to zoom

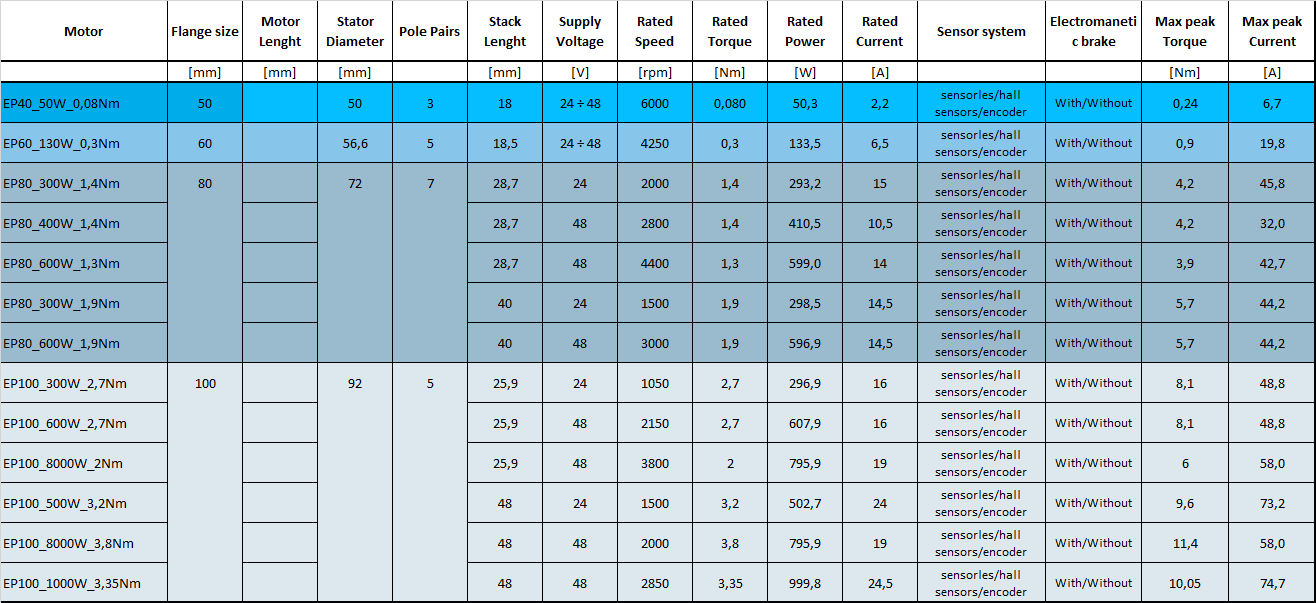

Product Range

Click to zoom
